Prodot Standard 3+1 Outdoor CCTV cable 90m with Black LLDPE Jacket

Model Name: V20P1443-OUT-90M

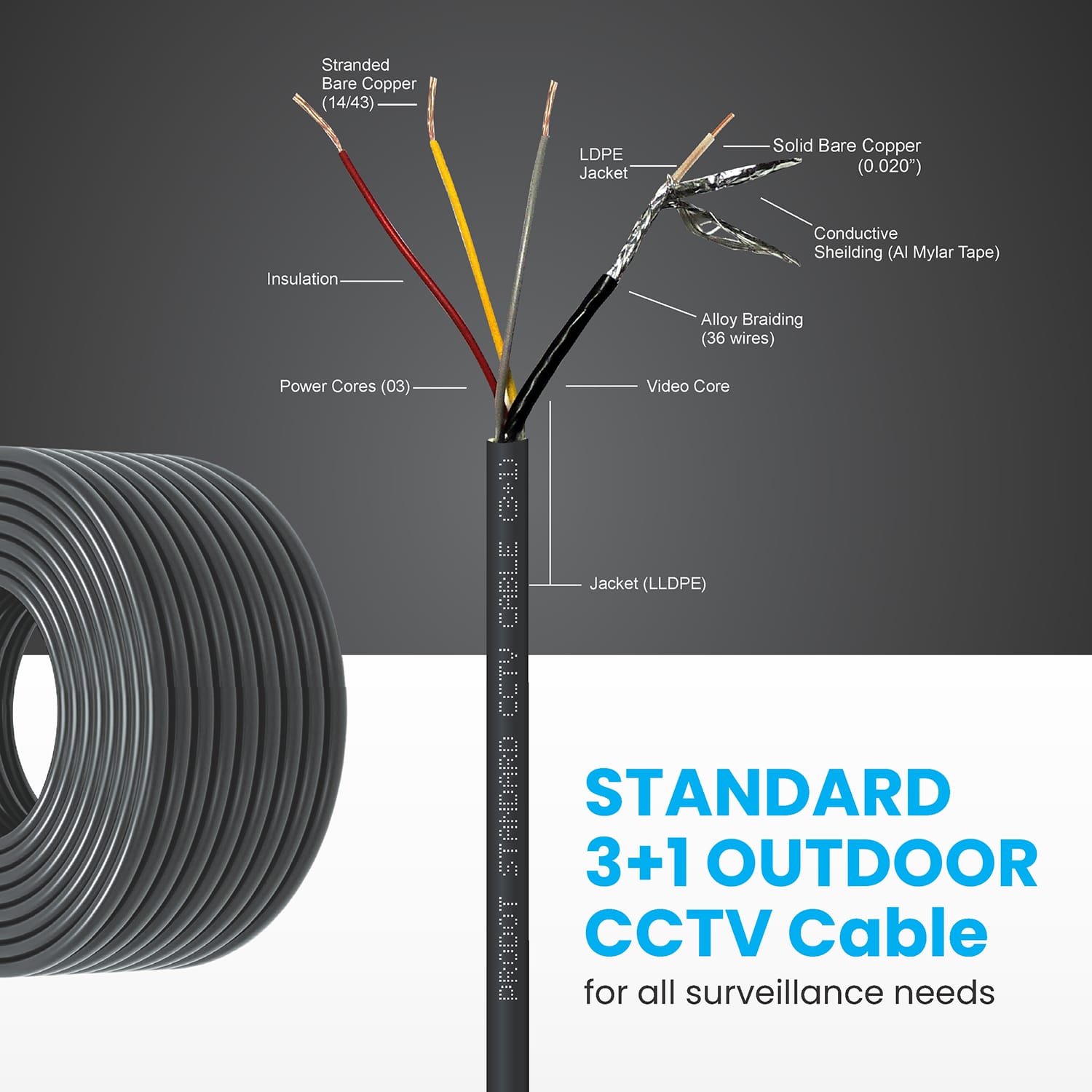

Conductor material: Bare Copper
Video core conductor: 0.51mm ± 0.02
Power core conductor: 14/0.09mm ± 0.02
No. of Power cores: 3
Insulation material: Low Density Polyethylene
Insulation diameter: 1.3mm ± 0.1
Shielding: Aluminium Mylar tape
Braiding: 36/0.12mm ± 0.01 (Alloy)
Jacket material: LLDPE
Jacket diameter: 6mm
Jacket color: Black
Operation Temperature: -5°C to 55°C
Cable Length: 90 Meter x 1U

Solid Copper: The pure copper conductor provides good electrical and thermal conductivity, offering resistance against corrosion and weathering for long-lasting performance. Its optimized strand size allows the cable to efficiently handle moderate voltage over reasonable distances, ensuring consistent power transmission.

All-Weather Performance (-5°C to 55°C): Crafted from high-grade LLDPE compound, this cable is built to endure extreme temperatures ranging from -5°C to 55°C for Indoor and Outdoor applications. Its durability across various climatic conditions makes it a reliable and preferred choice for users in diverse environments.

Shielded & Braided: Designed for better signal protection, this cable features an aluminium mylar tape shield that enhances metallic coverage for superior durability. Additionally, its braiding minimizes electromagnetic interference (EMI), ensuring a stable and noise-free video transmissions over long distances.

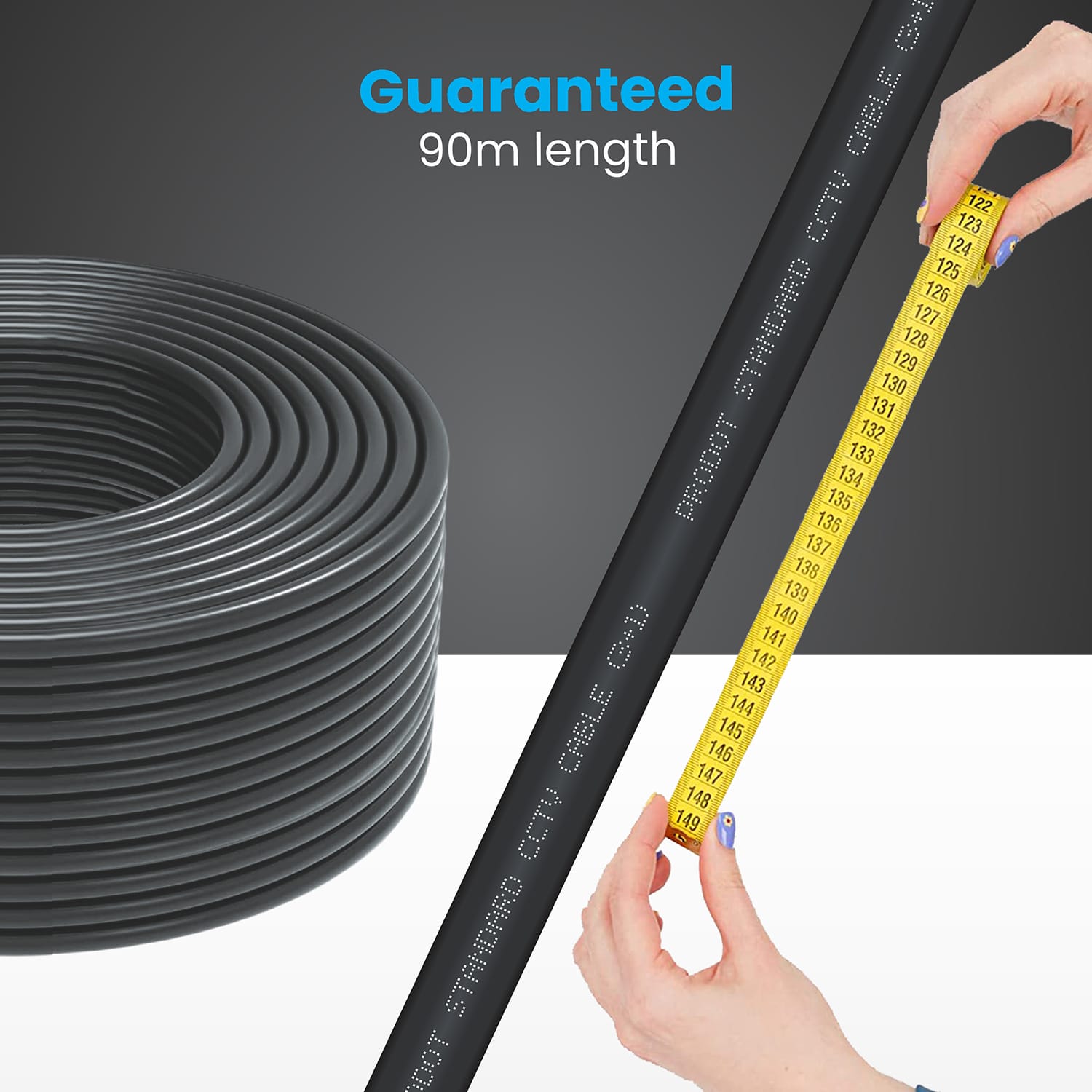

Guaranteed Length: This cable comes with sequential marking on every meter, allowing users to easily verify the exact length during installation.
